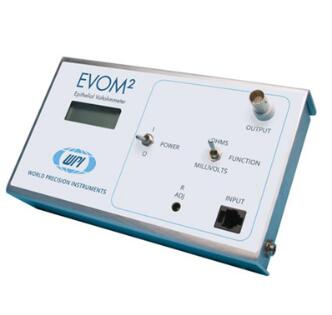

跨膜电阻仪 EVOM2
跨膜电阻仪EVOM2是最新一代用于特异性完成组织培养研究中TEER测量的电阻仪，与第一代的EVOM相比具有操作更简单，使用更轻松的特点。EVOM2不仅可以定性地测量单层贴壁细胞的健康状态，而且也能定量地测量单层细胞的融合情况。
全国热线400-160-1598
在线咨询
跨膜电阻仪EVOM2是最新一代用于特异性完成组织培养研究中TEER测量的电阻仪，与第一代的EVOM相比具有操作更简单，使用更轻松的特点。EVOM2不仅可以定性地测量单层贴壁细胞的健康状态，而且也能定量地测量单层细胞的融合情况。
独特的EVOM2 电路设计和STX2电极的完美结合，让其可以监测单层细胞的融合状态，当与WPI 公司设计的单个小室结合使用时，它也可以用来完成更加精确的定量测量
或更低电阻的测量，如血脑屏障(BBB)内皮生长电阻测量。
工作原理
通过主机产生10 μA的恒定跨膜电流，同时以一定的频率反转电极的极性，从而电极和膜均无电荷累积，10 μA 的电流通过STX2 的两个电流电极（I1和I2）跨过细胞膜，另一对电极（V1和V2）测量达到10 μA电流所需要的电压，并将信息发送给处理器。处理器根据欧姆定律将其转化为欧姆，在读数表上显示数字。因为电流是固定的10 μA，因此很容易转化出测量结果。如在膜电阻为1000 Ω时，10 μA电流通过的电压应是10 mV；
在膜电阻为200 Ω时，10 μA的电流将产生2 mV的电压；不论何种情况，在膜或电极上消耗的能量都非常少。
EVOM2参数
| 膜电压测量范围 | ±200 mV |
| 电压测量精度 | 0.1 mV |
| 电阻测量范围 | 0-9,999 Ω |
| 电阻测量分辨率 | 1 Ω |
| 交流方波电流 | 12.5 Hz 时额定±10 μA |
| 内置充电电池 | 6V可充电镍氢电池 |
| BNC 模拟输出 | 1-10 V ( 1 mV / Ω ) |
| 外部供电 | 12 V直流 |
| 额定电池运行时间 | 10 小时 |
| 尺寸 | 19cm x11cm x 6 cm |
| 重量 | 1.4 kg |
| 电极连接 | RJ-11 连接头 |
| 测试电阻 | 外部的 |
| 使用环境 | 10-38 ℃ 0-90%非凝结相对湿度 |
[1] Modulating nasal mucosal permeation using metabolic saturation and enzyme inhibition techniques
Journal of pharmacy and pharmacology , 2017, 69(9) ： 1075-1083
https://doi.org/10.1111/jphp.12749
[ 2] Oleoylethanolamine and palmitoylethanolamine modulate intestinal permeability in vitro via TRPV1
and PPARα
The FASEB Journal 2017 ， 31 （ 2 ）： 469-481
https://doi.org/10.1096/fj.201500132
[3] The transepithelial transport mechanism of polybrominated diphenyl ethers in human intestine determined using a Caco-2 cell monolayer
Environmental Research 2017, 154 : 93-100
https://doi.org/10.1016/j.envres.2016.12.024
[4] VEGF isoforms have differential effects on permeability of human pulmonary microvascular endothelial cells
Respiratory Research 2017, 18:116
https://doi.org/10.1186/s12931-017-0602-1
[5] Structurally and functionally characterized in vitro model of rabbit vocal fold epithelium
Tissue and Cell 2017 ， 49 （ 3 ）： 427-434
https://doi.org/10.1016/j.tice.2017.03.006
[6] A comparative study of five physiological key parameters between four different human trophoblast- derived cell lines
Sci Rep. 2017; 7: 5892.
https://doi.org/10.1038/s41598-017-06364-z
[7] Abstract 4330: Astrocytic S1P3 regulates blood-brain/tumor barrier permeability
Cancer Res 2017;77(13 Suppl):Abstract nr 4330
https://doi.org/10.1158/1538-7445.AM2017-4330
[8] Inactivation of Ephrina1/EpHA2 Kinase Attenuates Lipopolysaccharide-Induced Intestinal Barrier Dysfunction in Caco-2 Monolayer
Gastroenterology 2017, 152 (5), Supplement 1 : S740
http://dx.doi.org/10.1016/S0016-5085(17)32572-6
[9] Evaluating the Toxicity of Cigarette Whole Smoke Solutions in an Air-Liquid-Interface Human In
Vitro Airway Tissue Model
Toxicological Sciences, 2017 ， 156 （ 1 ）： 14–24,
https://doi.org/10.1093/toxsci/kfw239
[10] Titanium dioxide nanoparticle ingestion alters nutrient absorption in an in vitro model of the small intestine
NanoImpact 2017 ， 5 ： 70-82
https://doi.org/10.1016/j.impact.2017.01.002
[11]Activation of melatonin receptor (MT1/2) promotes P-gp transporter in methamphetamine-induced toxicity on primary rat brain microvascular endothelial cells
Toxicology in Vitro 2017 ， 41 ： 42-48
https://doi.org/10.1016/j.tiv.2017.02.010
[12] Oxidative stress-mediated NFκB phosphorylation upregulates p62/SQSTM1 and promotes retinal
pigmented epithelial cell survival through increased autophagy
PLoS ONE 2017 ， 12(2): e0171940.
https://doi.org/10.1371/journal.pone.0171940
[13] Quantitative analysis of lab-to-lab variability in Caco-2 permeability assays
Eur J Pharm Biopharm. 2017, 114:38-42.
https://doi.org/10.1016/j.ejpb.2016.12.027.
[14] TNFα alters occludin and cerebral endothelial permeability: Role of p38MAPK
PLoS ONE 2017, 12(2): e0170346.
https://doi.org/10.1371/journal.pone.0170346
[15] Gb3-binding lectins as potential carriers for transcellular drug delivery
Expert Opinion on Drug Delivery, 2017 ， 14(2) : 141-153,
https://DOI.org/10.1080/17425247.2017.1266327
[16] Penetration of bevacizumab and ranibizumab through retinal pigment epithelial layer in vitro
Retina: May 2015，35（5）：1007–1015
https://doi.org/10.1097/IAE.0000000000000428
[17] Development of the Caco-2 Model for Assessment of Iron Absorption and Utilisation at Supplemental Levels
Journal of Pharmacy and Nutrition Sciences, 2012, 2, 27-34
[18] Assessing the transport of receptor-mediated drug-delivery devices across cellular monolayers
J Biomater Sci Polym Ed. 2014;25(5):455-73.
https://doi.org/10.1080/09205063.2013.870026.
[19] Tight junction disruption by cadmium in an in vitro human airway tissue model
Respiratory Research 2015，16:30
https://doi.org/10.1186/s12931-015-0191-9
[20] Investigation of the cytotoxicity of food-grade nanoemulsions in Caco-2 cell monolayers and HepG2 cells
Food Chemistry 2013，141（1）：29-33
https://doi.org/10.1016/j.foodchem.2013.03.009
[21] Development and functional characterization of extrahepatic cholangiocyte lines from normal rats
Dig Liver Dis. 2015, 47(11):964-72.
https://doi.org/10.1016/j.dld.2015.07.012.
[22] Probiotic Lactobacillus Species Strengthen Intestinal Barrier Function and Tight Junction Integrity in Experimental Necrotizing Enterocolitis
J Probiotics Health. 2017; 5(1): 159.
https://doi.org/10.4172/2329-8901.1000159
[23] In vivo measurement of vocal fold surface resistance
Laryngoscope. 2017 Jun 2.
https://doi.org/10.1002/lary.26715.
[24] Inhibition of Murine Pulmonary Microvascular Endothelial Cell Apoptosis Promotes Recovery of Barrier Function under Septic Conditions
Mediators of Inflammation 2017，2017, Article ID 3415380, 15 pages
https://doi.org/10.1155/2017/3415380
[25] Primary human polarized small intestinal epithelial barriers respond differently to a hazardous and an innocuous protein
Food and Chemical Toxicology 2017，106, Part A, 70-77
https://doi.org/10.1016/j.fct.2017.05.038
[26] Ulinastatin protects against lipopolysaccharide-induced cardiac microvascular endothelial cell dysfunction via downregulation of lncRNA MALAT1 and EZH2 in sepsis
International journal of molecular medicine. , 2017, 39(5)：1269-1276
https://doi.org/10.3892/ijmm.2017.2920
[27] The differential effects of azithromycin on the airway epithelium in vitro and in vivo
Physiological Reports 2016, 4 : e12960
https://DOI.org/10.14814/phy2.12960
[28] Illuminating dynamic neutrophil trans-epithelial migration with micro-optical coherence tomography
Sci Rep. 2017; 7: 45789.
https://doi.org/10.1038/srep45789
[29] Nuclear erythroid 2-related factor 2 activation inhibits house dust mite–induced sinonasal epithelial cell barrier dysfunction
Int Forum Allergy Rhinol. 2017; 7(5):536-541.
https://doi.org/10.1002/alr.21916.
[30] Dacomitinib-induced diarrhoea is associated with altered gastrointestinal permeability and disruption in ileal histology in rats
Int J Cancer. 2017 Jun 15;140(12):2820-2829.
https://doi.org/10.1002/ijc.30699.
https://doi.org/10.1097/IAE.0000000000000428
[31] Differential effects of basolateral and apical iron supply on iron transport in Caco-2 cells
Int Forum Allergy Rhinol. 2016, 6(11):1145-1150.
https://doi.org/10.1002/alr.21827
[32] Air pollutant–mediated disruption of sinonasal epithelial cell barrier function is reversed by
activation of the Nrf2 pathway
J Allergy Clin Immunol. 2016;138(6):1736-1738.e4.
https://doi.org/10.1016/j.jaci.2016.06.027.
[33] The role of CB1 in intestinal permeability and inflammation
FASEB J. 2017;31(8):3267-3277.
https://doi.org/10.1096/fj.201601346R.
[34] Permeability and anti–vascular endothelial growth factor effects of bevacizumab, ranibizumab, and
aflibercept in polarized retinal pigment epithelial layer in vitro
Retina. 2017 Jan;37(1):179-190.
https://doi.org/10.1097/IAE.0000000000001117.
[35] Chapter Three - The Use of DQ-BSA to Monitor the Turnover of Autophagy-Associated Cargo
Methods Enzymol. 2017;587:43-54.
https://doi.org/10.1016/bs.mie.2016.09.052.
[36] A portable and reconfigurable multi-organ platform for drug development with onboard microfluidic flow control
Lab Chip. 2016, 20;17(1):134-144.
https://DOI.org/10.1039/c6lc01236a
[37] Mechanisms allowing protein delivery in nasal mucosa using NPL nanoparticles
Journal of Controlled Release 232 (2016) 42–50
https://doi.org/10.1016/j.jconrel.2016.04.014
[38] Group B adenovirus enadenotucirev infects polarised colorectal cancer cells efficiently from the basolateral surface expected to be encountered during intravenous delivery to treat disseminated cancer
Virology. 2017;505:162-171.
https://doi.org/10.1016/j.virol.2017.02.011.
[39] Effects of low doses of carbendazim or iprodione either separately or in mixture on the pubertal rat seminiferous epithelium: An ex vivo study
Toxicol In Vitro. 2017. pii: S0887-2333(17)30147-9.
https://doi.org/10.1016/j.tiv.2017.05.022
[40] Ghee Butter as a Therapeutic Delivery System
Journal of Nanoscience and Nanotechnology, 2017 ， 17 （ 2 ）： 977-982(6)
https://doi.org/10.1166/jnn.2017.12623
[41] Using Drugs to Probe the Variability of Trans-Epithelial Airway Resistance
PLoS ONE 11(2): e0149550.
https://doi.org/10.1371/journal.pone.0149550
[42] Enterohemorrhagic Escherichia coli Reduces Mucus and Intermicrovillar Bridges in Human Stem Cell-Derived Colonoids
Cell Mol Gastroenterol Hepatol 2016;2:48–62;
http://dx.doi.org/10.1016/j.jcmgh.2015.10.001
[43] Analysis of Cancer-Targeting Alkylphosphocholine Analogue Permeability Characteristics Using a Human Induced Pluripotent Stem Cell Blood–Brain Barrier Model
Mol. Pharmaceutics, 2016, 13 (9), pp 3341–3349
https://DOI.org/10.1021/acs.molpharmaceut.6b00441
[44] Porcine lactoferrin-derived peptide LFP-20 protects intestinal barrier by maintaining tight junction complex and modulating inflammatory response
Biochemical Pharmacology 104 (2016) 74–82
https://doi.org/10.1016/j.bcp.2016.01.009
[45] Toxoplasma gondii Infection Promotes Epithelial Barrier Dysfunction of Caco-2 Cells
Journal of Histochemistry & Cytochemistry 2016, 64(8) 459–469
https://DOI.org/10.1369/0022155416656349
产品用途
■ 研究血脑屏障内皮细胞的药物和营养物质转运
■ CaCo-2大肠癌细胞或其它粘膜或上皮癌细胞的药效学研究
■ 培养的肠道粘膜细胞的药物吸收和营养物质转运研究
